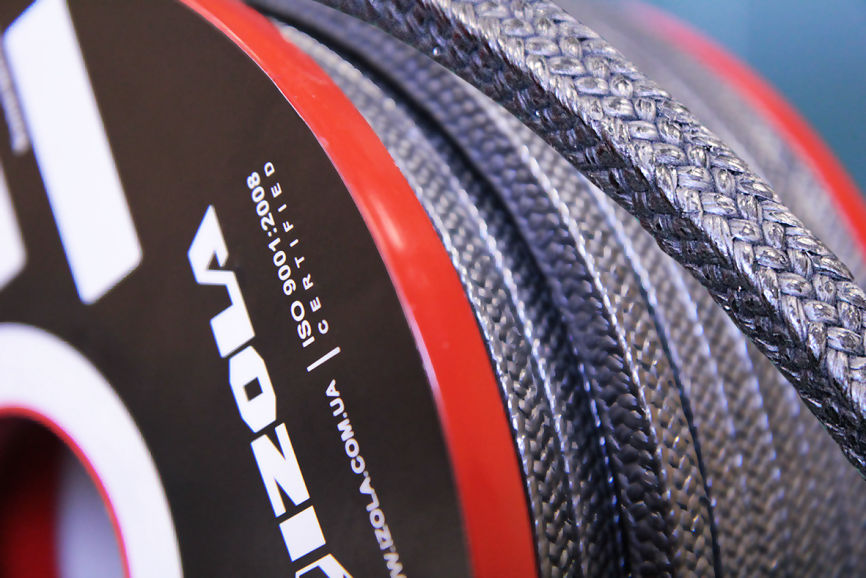

Gland Packing IZOLOCK

Our packings are applied in all industries. We can offer both finished products and individual sealing solutions.

Mobirise

The Material Choice

The materials choice is an important process in our production. Sometimes we use unconventional fibers to reach the goal and the final result usually exceed customer expectations.

Mobirise

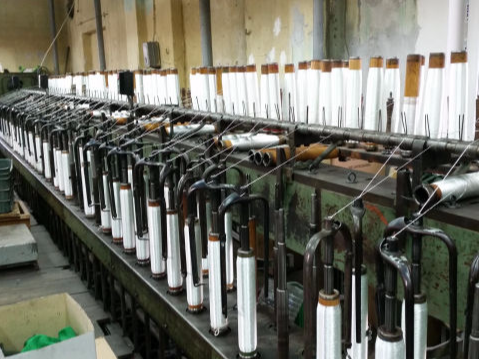

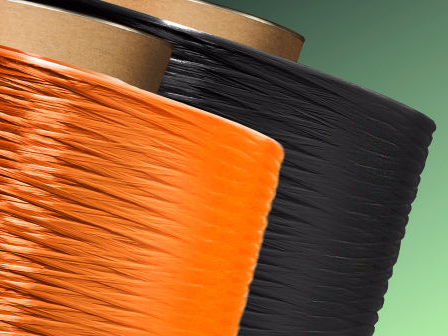

Yarns Preparation

A combination of different fibers is often needed for producing high quality textile materials. We have all the equipment needed for preparing complex threads.

Mobirise

Braiding Process

There are four traditional types of packing weaving. We developed two more for implementing difficult projects.


Mobirise

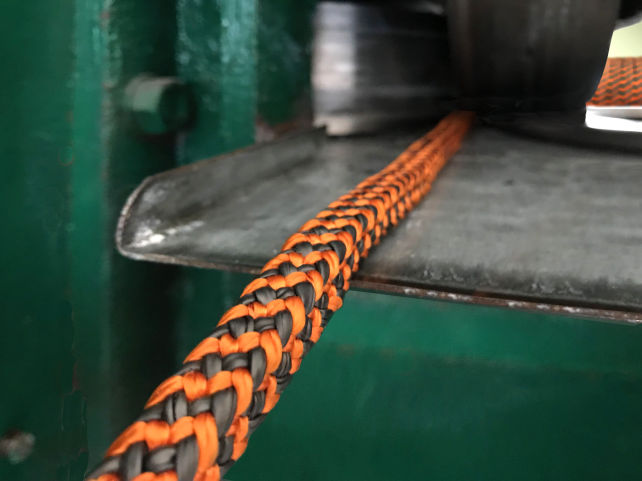

Calendering

Many manufacturers think that calendering only squares the packing. We believe that packing application pressure and slip speed can be improved by controlling this process.

42

types of
packing

50

maximum
pressure [MPa]

1250

maximum
temperature [C]

30

maximum
speed [m/c]

Types of packing and application area

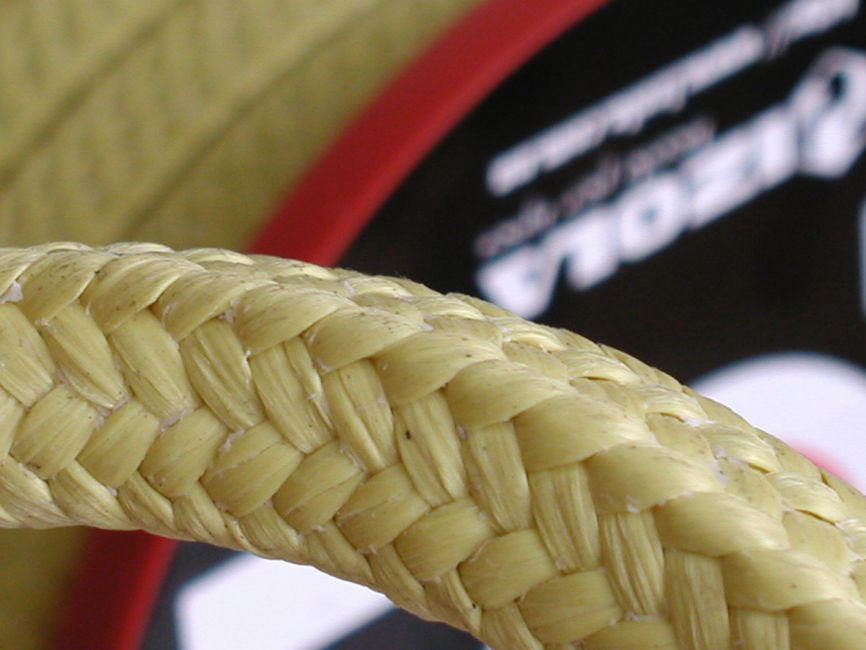

Type A

The packings of type A consist of strong chemical fibers. They are highly abrasion-resistant, have great chemical and thermal resistance.

Main application fields are reactive abrasive environments such as treatment plants, chemical industry, paper and cement industry, sugar production, metallurgy and mining industry.

The packings of type A:

IZOLOCK A-001
IZOLOCK A-002
IZOLOCK A-010
IZOLOCK A-010P
IZOLOCK A-020
IZOLOCK A-030
IZOLOCK A-040
IZOLOCK A-043

Type C

This broadest group includes gland packing based on carbon, graphite and other high-temperature threads. They’ve got high temperature parameters, good chemical resistance, low friction and great packing properties.

Application areas: water, steam, overheated steam, aggressive chemical environments.

The packings of type C:

IZOLOCK С-001
IZOLOCK С-010
IZOLOCK С-010R
IZOLOCK С-200
IZOLOCK С-200R
IZOLOCK С-210
IZOLOCK С-210M
IZOLOCK С-220
IZOLOCK С-230
IZOLOCK С-240
IZOLOCK С-250

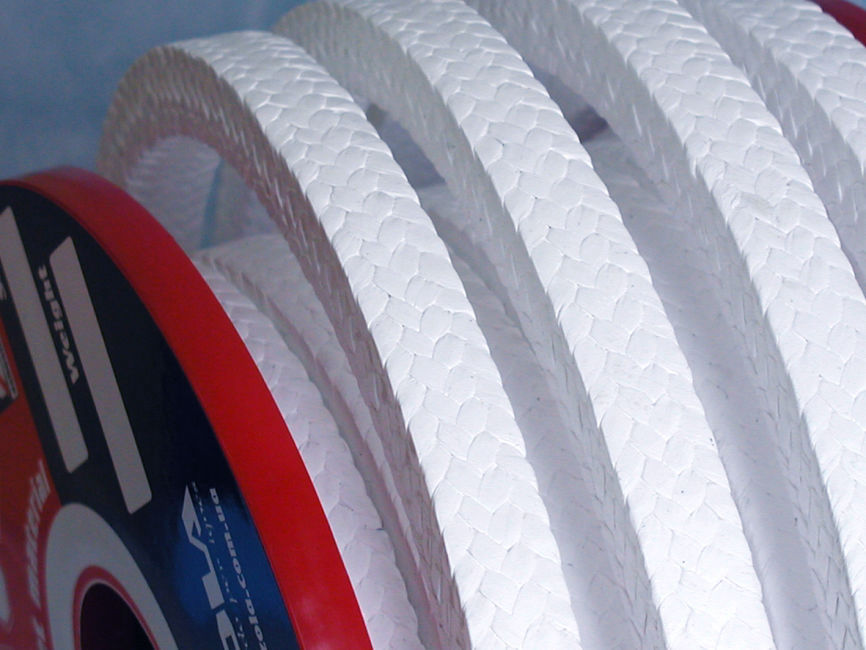

Type P

The packings of type P consist of strong threads based on PTFE. They have excellent resistance to aggressive chemical environments, great sealing parameters and low friction coefficient.

Application areas: aggressive chemical, nutritional and pharmaceutical environments.

The packings of type P:

IZOLOCK P-010
IZOLOCK P-100
IZOLOCK P-020
IZOLOCK P-210

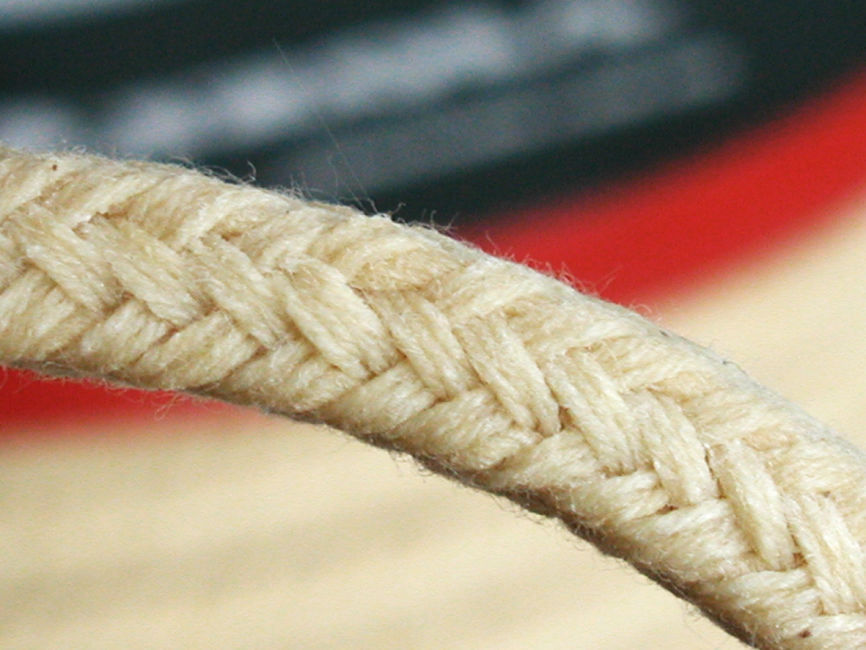

Type N

The packings of this group consist of strong threads based on string natural fibers. They have good resistance to weak chemical impacts, good tribonomic parameters and sealing features.

Application areas: water supply, food and sugar industry.

Набивки группы:

IZOLOCK N-001
IZOLOCK N-002
IZOLOCK N-010
IZOLOCK N-020

Technical Parameters Of Packing IZOLOCK

Media Pressure

Сhoose type of your equipment

Mobirise

Application
Temperature

The environment temperature is an important factor to consider when choosing packing.

Mobirise

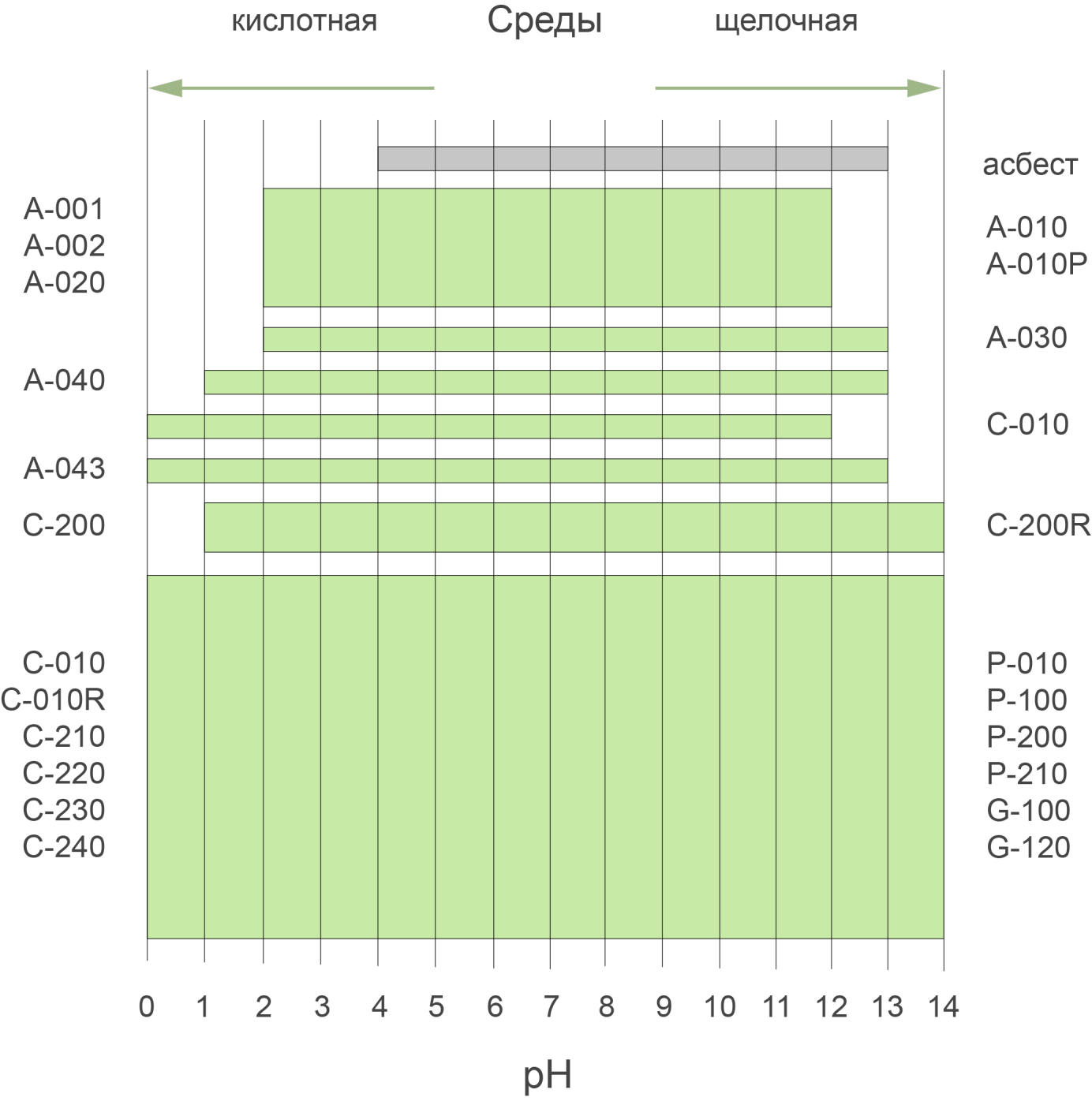

pH

Chemical resistance of gland packing is one of the most important parameters of their applicability in aggressive environments.

Half of the IZOLA company’s packing assortment is of pH from 0 to 14, meaning these packings can insulate almost any environment.

Mobirise

Sliding Speed

Modern high-temperature fibers with low friction coefficient and high wear resistance allow to use faster types of pumping equipment.

How to make an order

1. Select packing yourself by exploring the catalog or the parameters table.

2. Let us help you in the selection of packing. Simply tell us the initial parameters (temperature, pressure and composition of the environment, type of the equipment).

Order form: packing model + cross section size (mm) + amount (kg)

For example: IZOLOCK C-010 12x12 mm, 20 kg
