Thermal Insulation cords IZOPACK

Our company manufactures cords applied at temperatures above +1200 C with low thermal conductivity combined with excellent sealing features and chemical stability

Mobirise

The Material Choice

The materials choice is an important process in our production. Sometimes we use unconventional fibers to reach the goal and the final result usually exceed customer expectations.

Mobirise

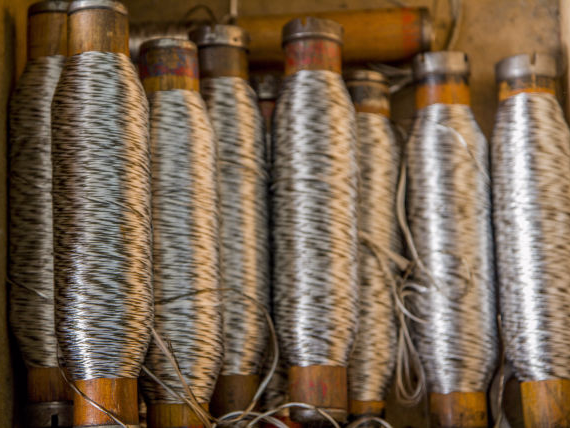

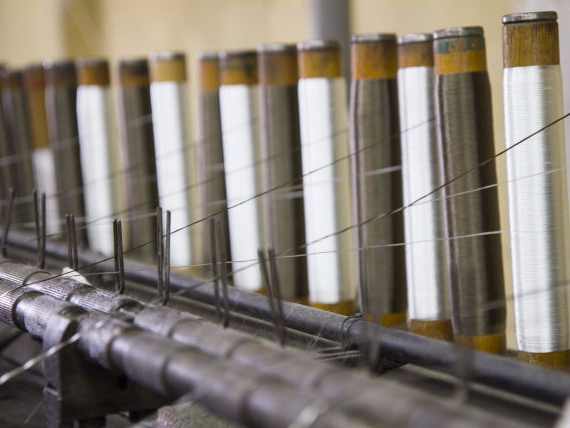

Yarns Preparation

A combination of different fibers is often needed for producing high quality textile materials. We have all the equipment needed for preparing complex threads.

Mobirise

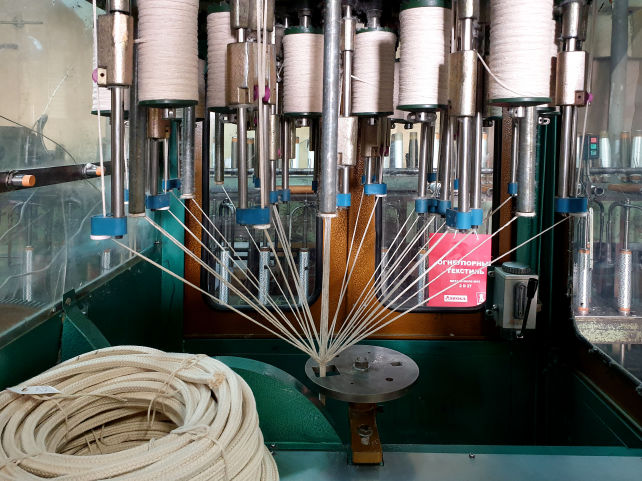

Braiding Process

We use 10 different types of weavings. Some of them are our own development. Therefore our range of cords is that wide and we can say without exaggeration that we know everything about high temperature cords.

Mobirise

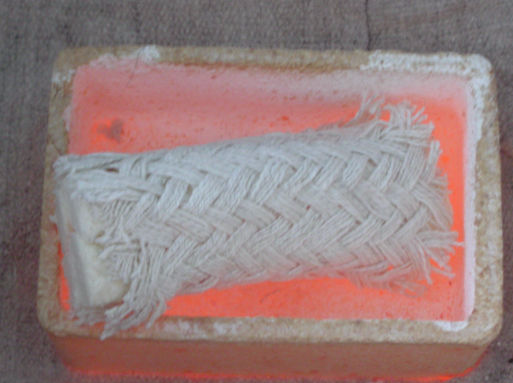

Testing

All our products are periodically tested in laboratory furnaces in different temperature modes. Having our own laboratory equipment greatly facilitates the innovative research of our employees.

42

types of cords

1250

maximal temperature [C]

Types of Cords IZOPACK

Mobirise

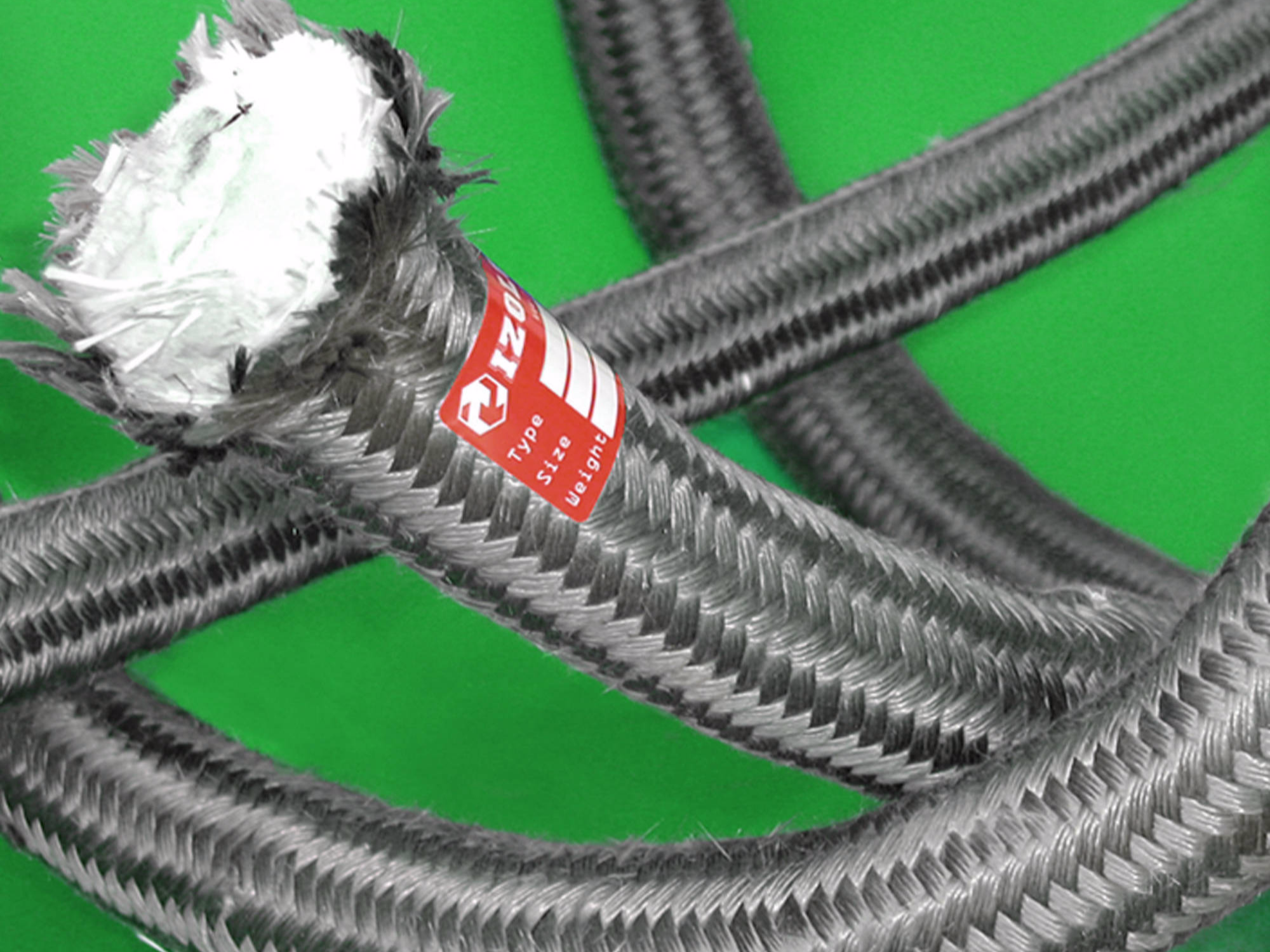

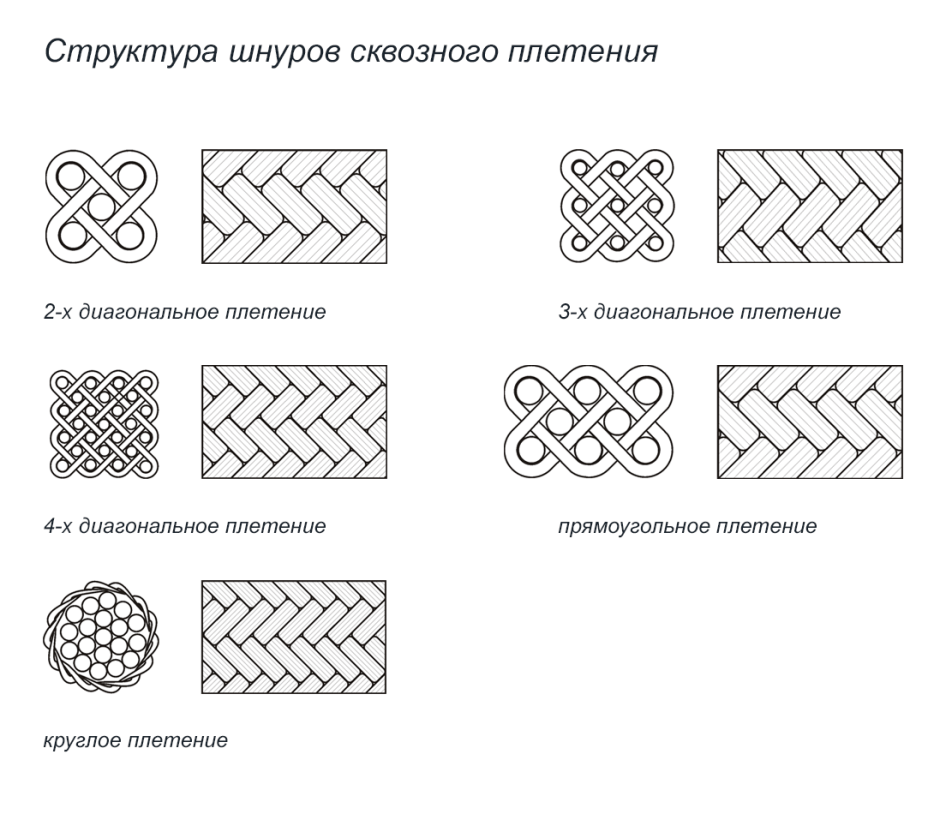

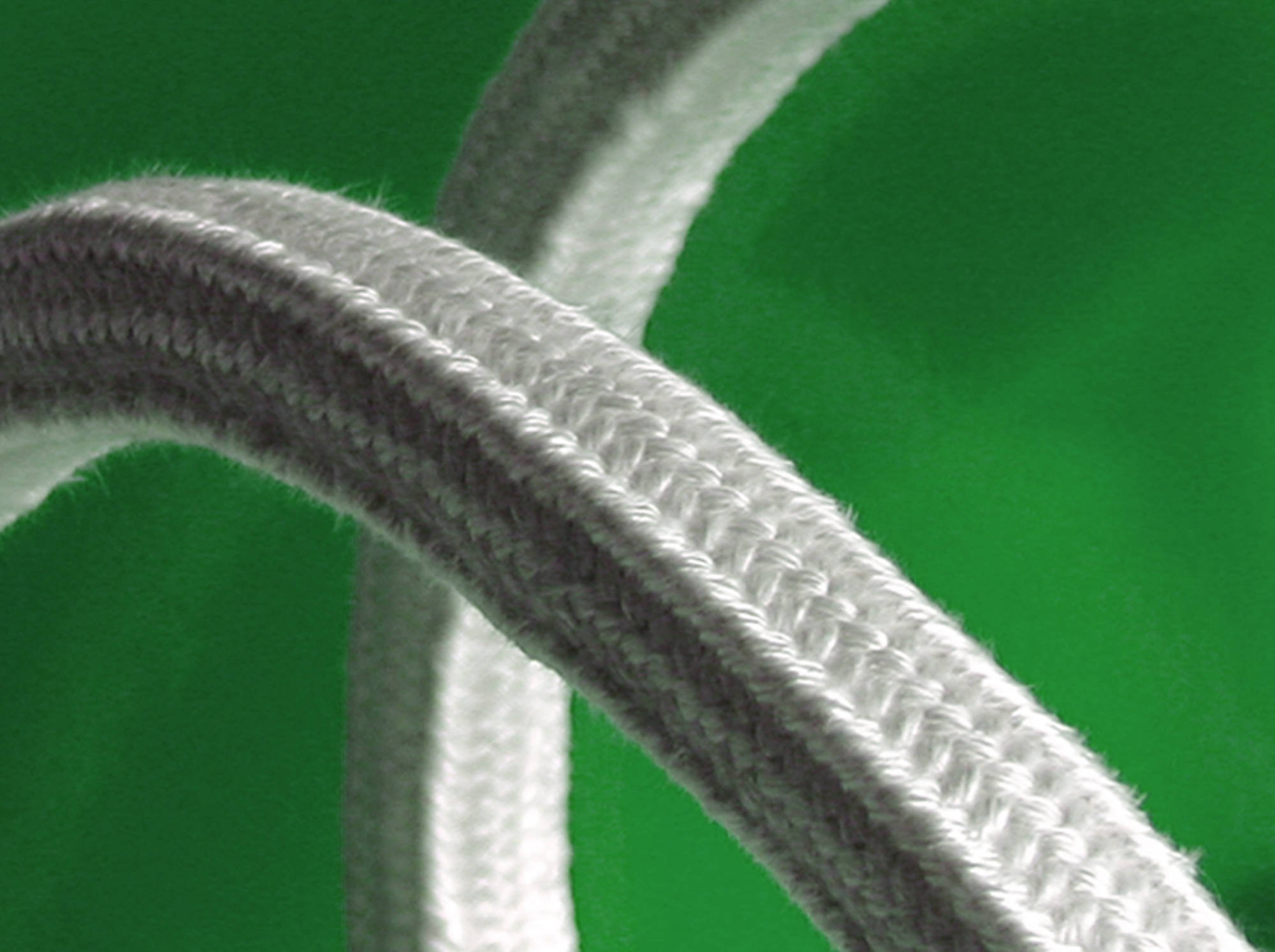

Cords of Cross Section Braiding

Insulating cords of cross section braiding have denser structure than those cords of other types. They are produced of square, round and rectangular sections and come in sizes from 4 to 80 mm.

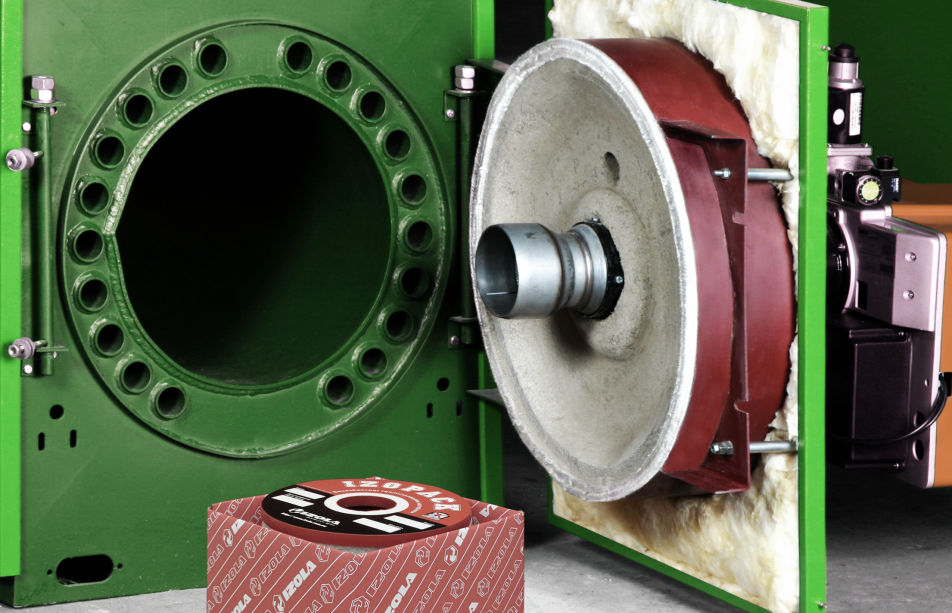

The cords high density allows them to be used for hot gas systems sealant and in places where density and cord size accuracy are determining factors.

Mobirise

Cords of Cross Section Braiding Types



IZOPACK-50

IZOPACK-70

IZOPACK-75

IZOPACK-90

IZOPACK-120

IZOPACK-130

Mobirise

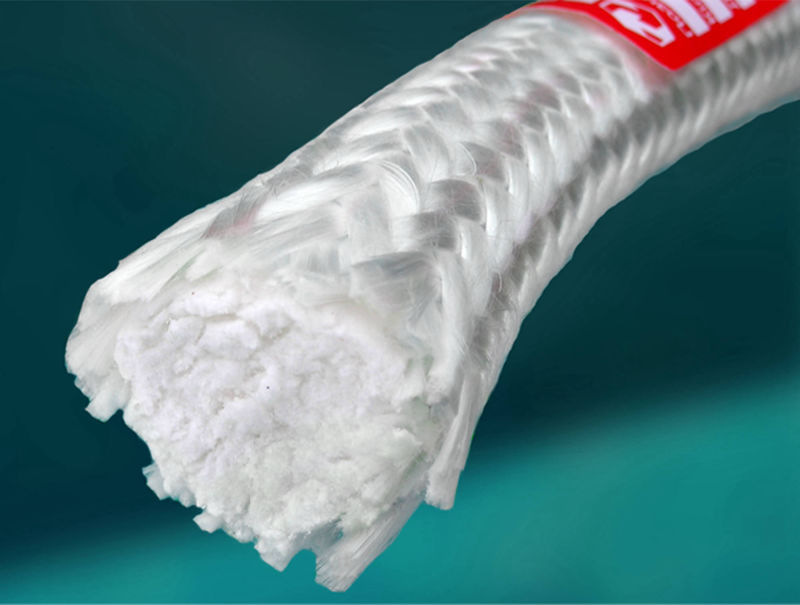

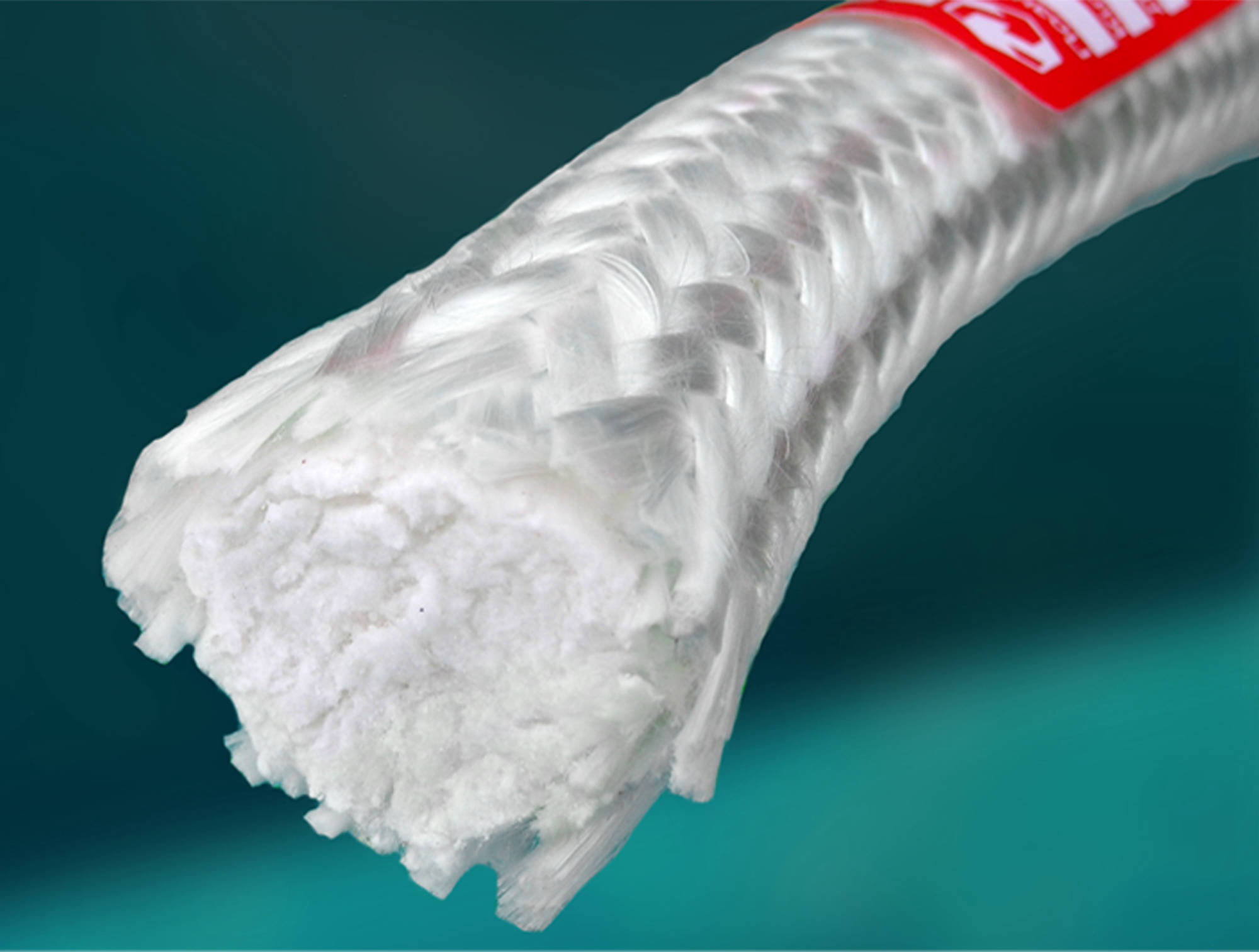

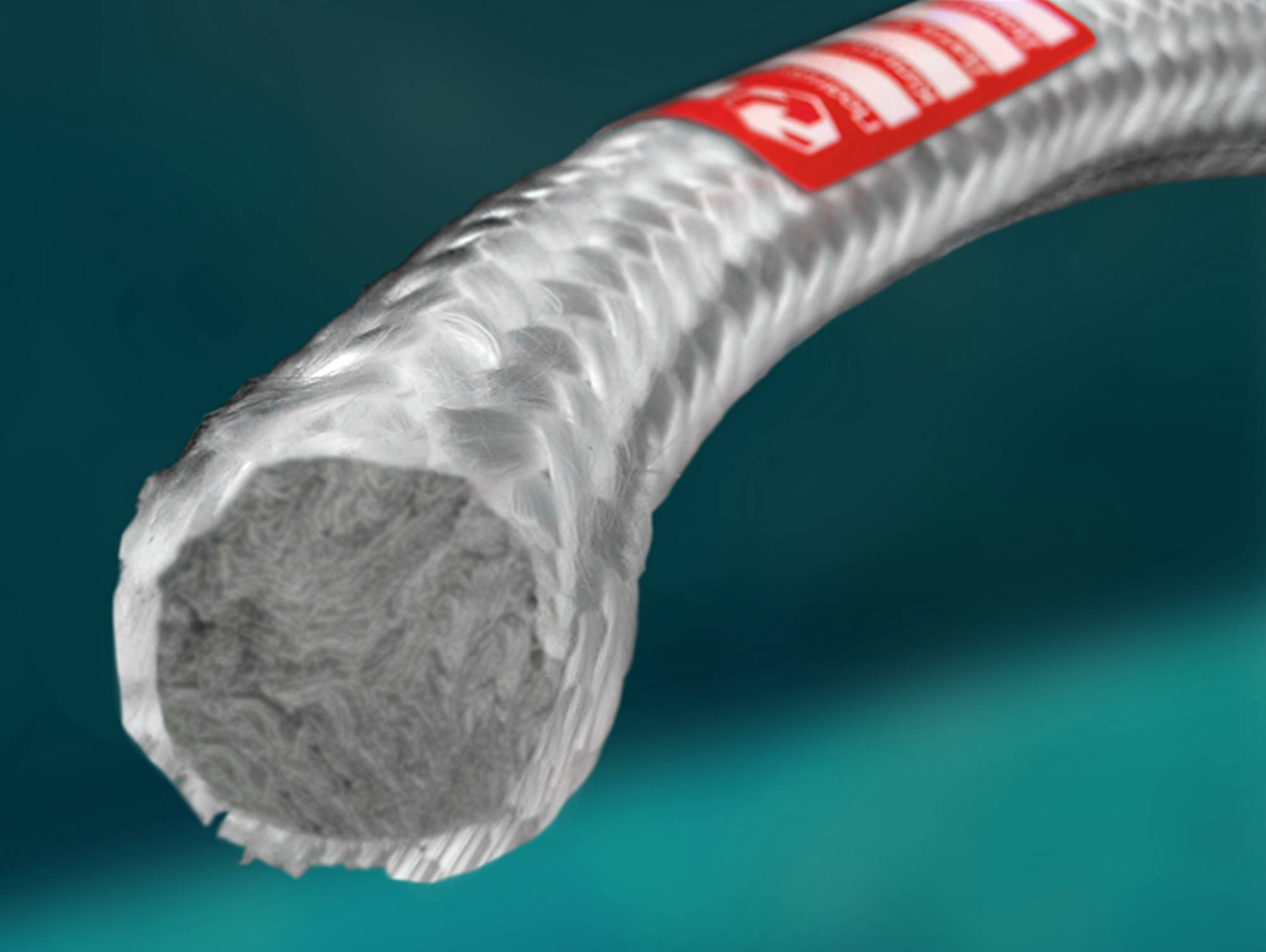

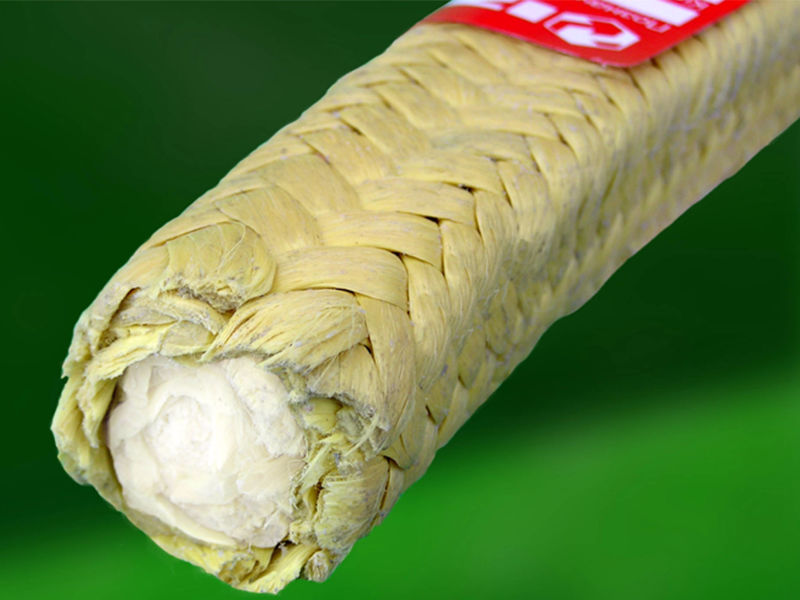

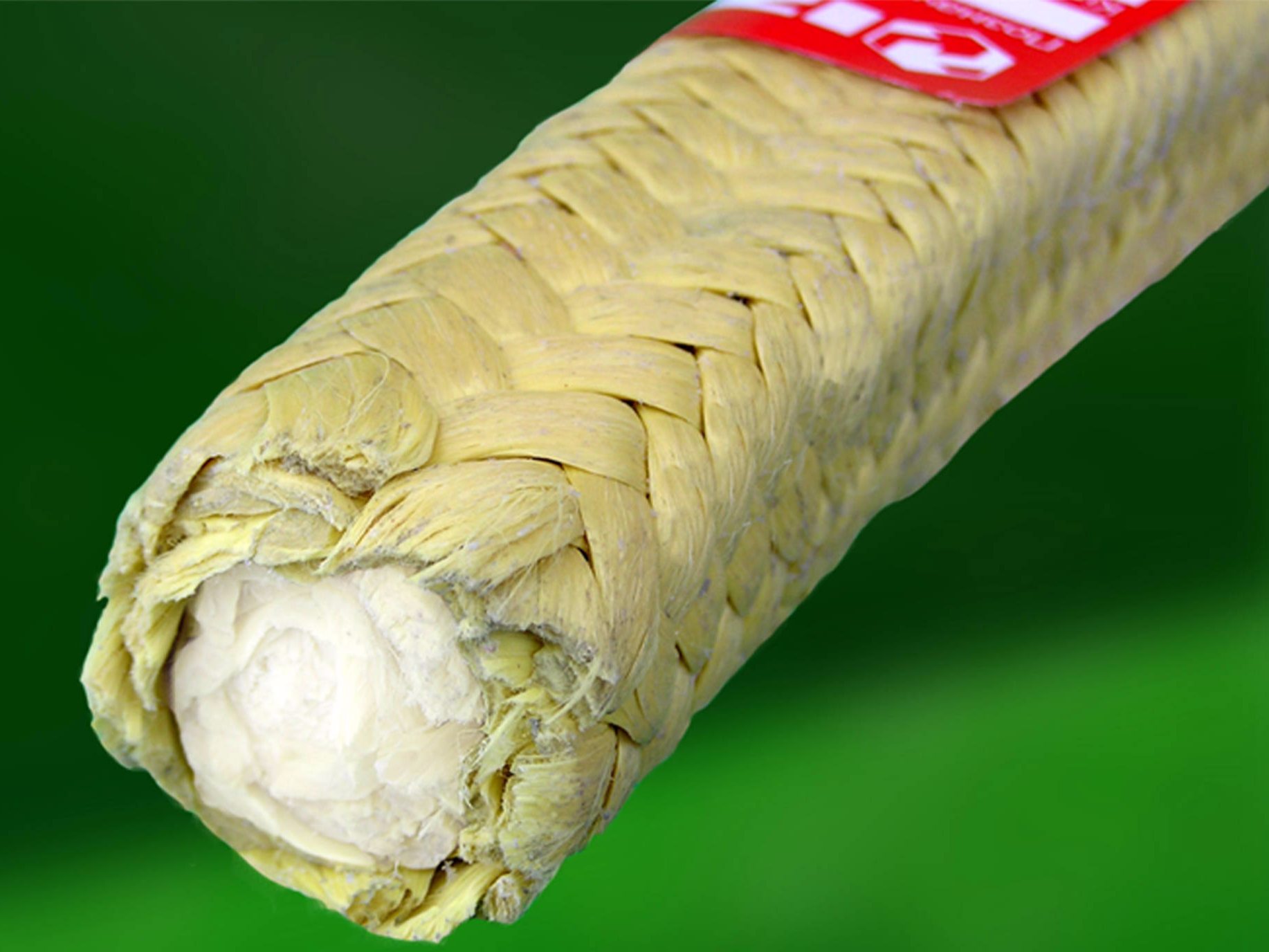

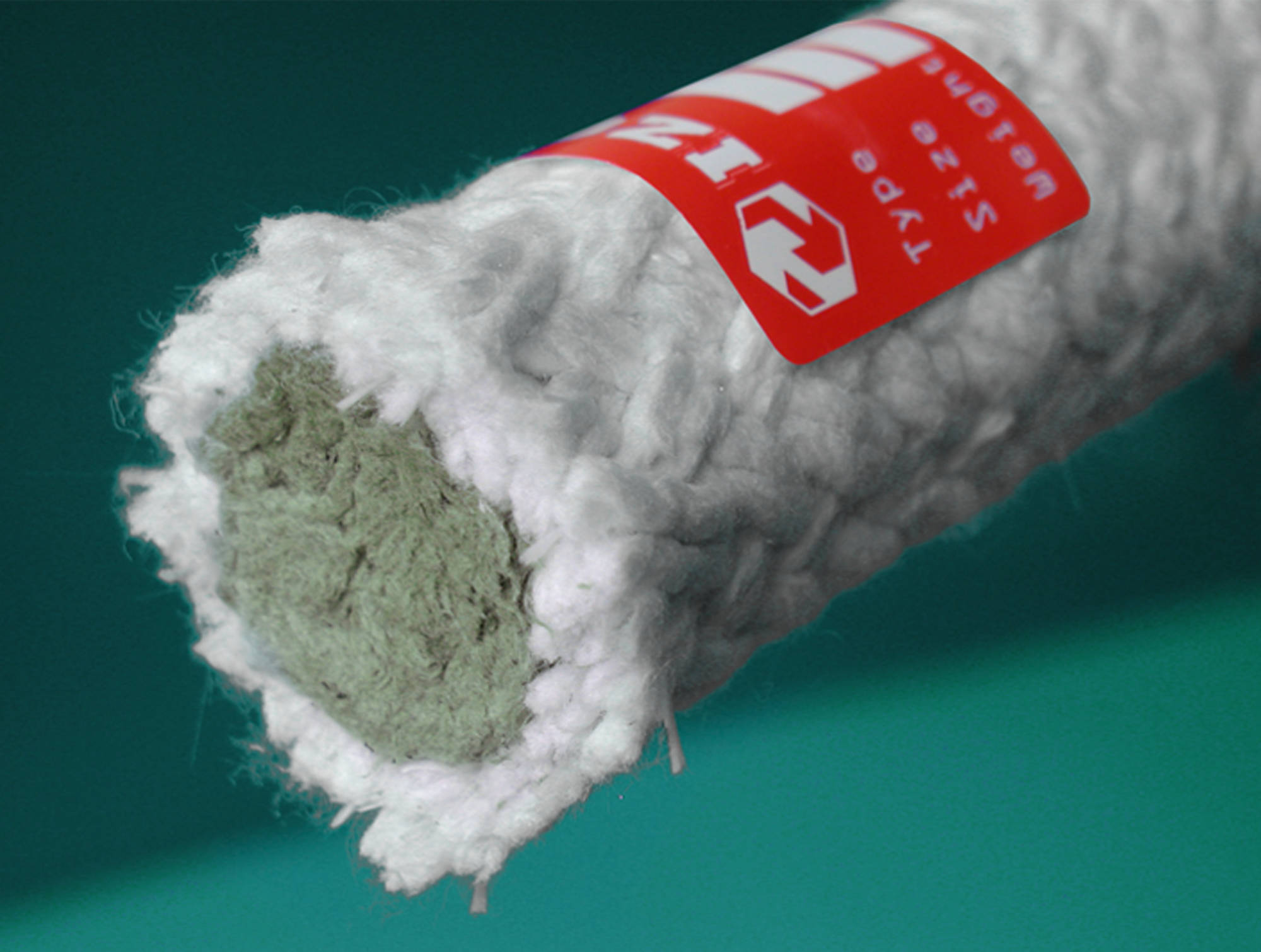

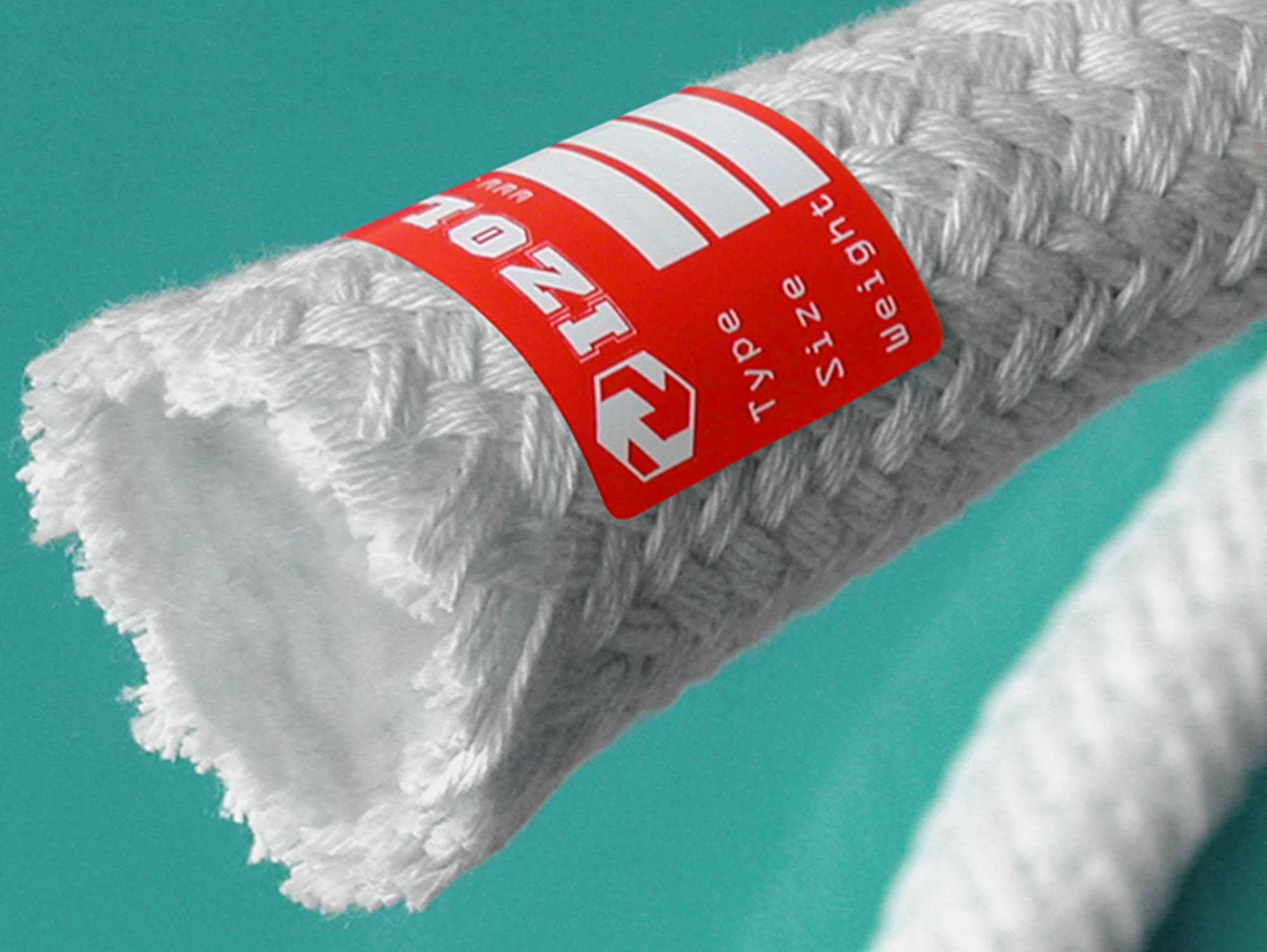

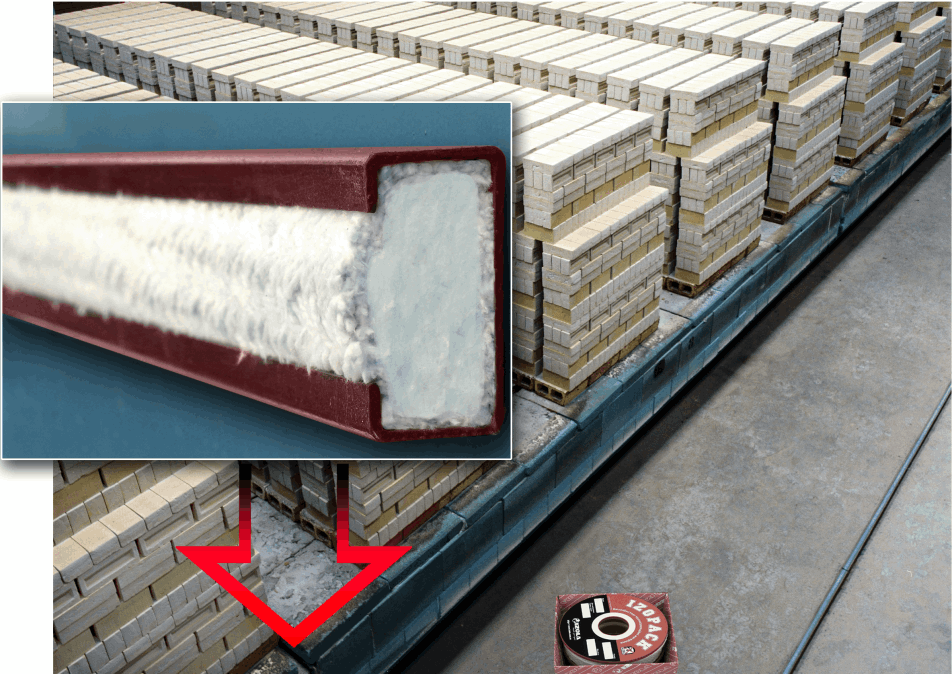

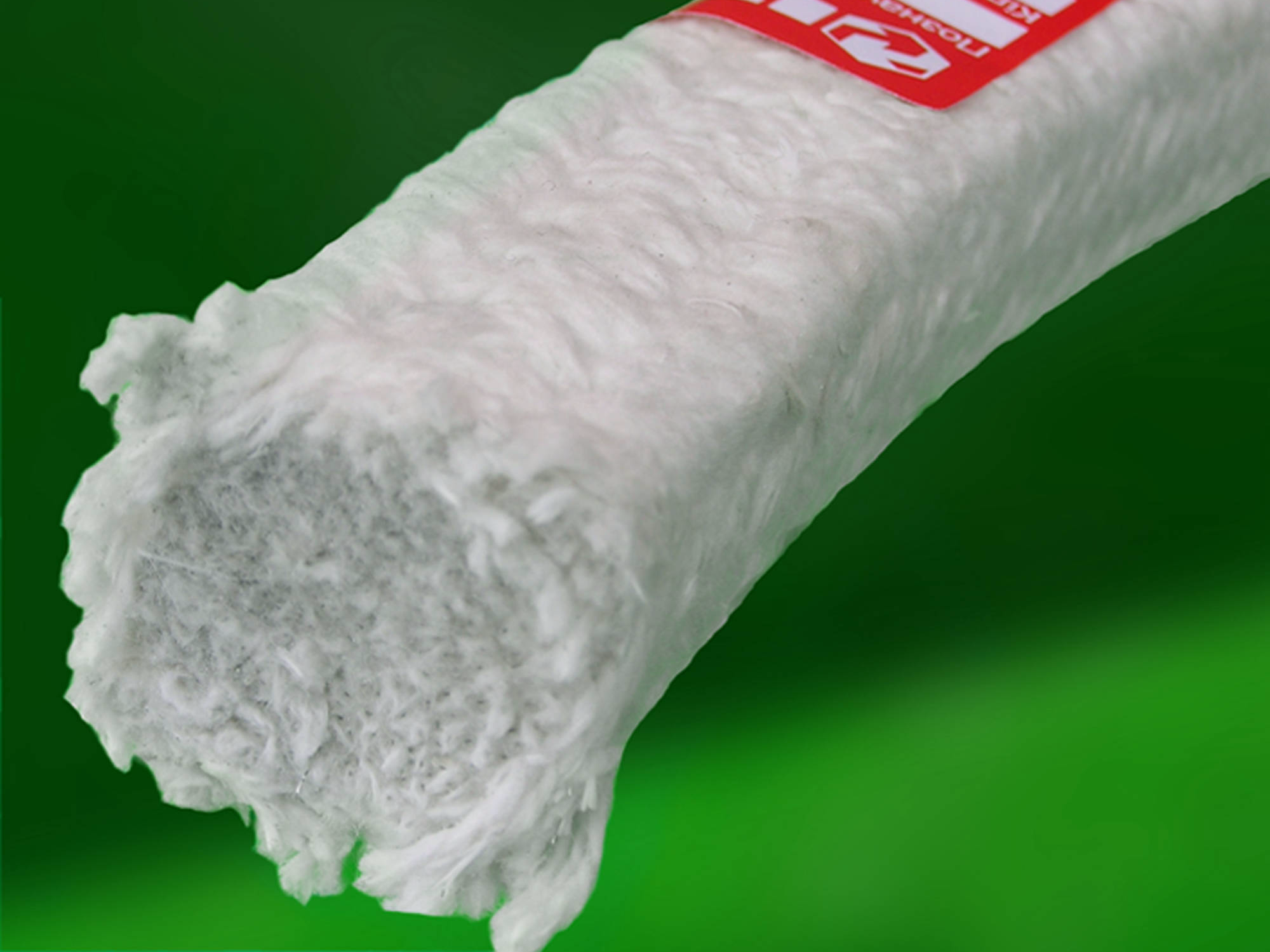

Cords with Fillers

The heat-insulating cords with fillers are same in appearance as the cords of cross section braiding, but have a softer structure. They consist of a tight outer braid and a high temperature filler, which is usually based on a glass, basalt or ceramic fiber.

They are often used in places where the cross section braiding cords application require additional, more precise refinement of the mounting seat or the insulating surface.

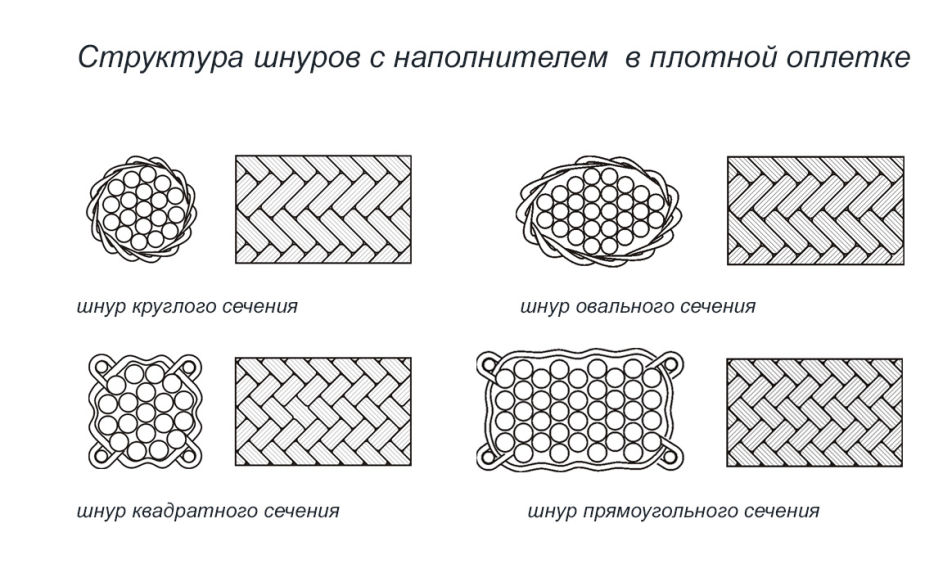

The cords with fillers are made of round, oval, square, rectangular or trapezoidal shape of cross section and come in sizes from 12 to 150 mm.

Mobirise

Filled Cords Types


IZOPACK-52

IZOPACK-57

IZOPACK-72

IZOPACK-77

IZOPACK-92

IZOPACK-97

IZOPACK-122

IZOPACK-127

IZOPACK-132

IZOPACK-137

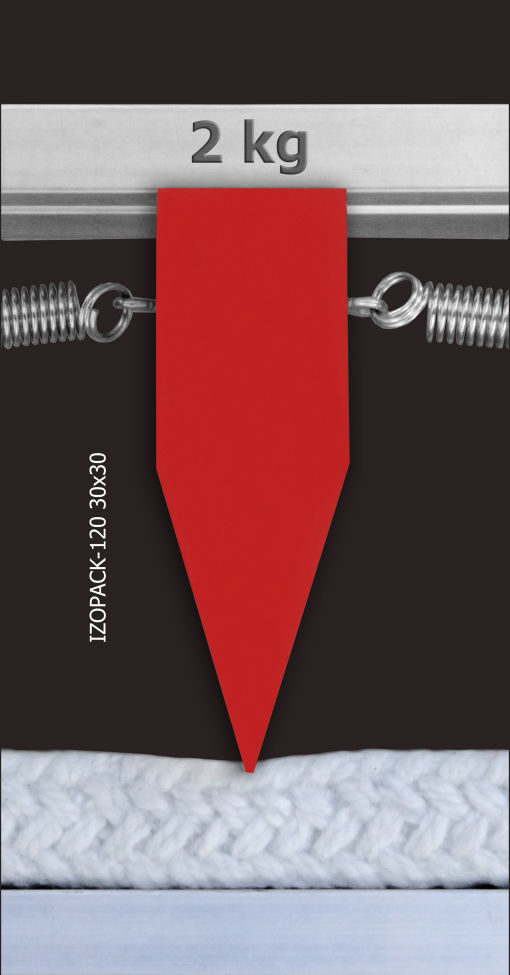

Density of Sealant Cords

Mobirise

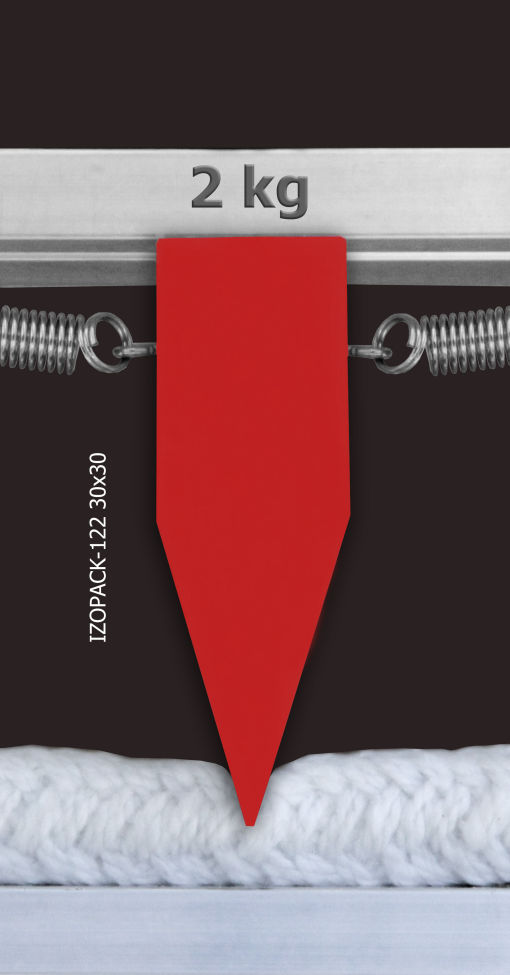

Cords density comparison

The cross section braiding cords have a dense structure and are usually used in new equipment.

The cords with fillers do not differ in appearance from the cross section braiding cords, but have a softer structure.

Mobirise

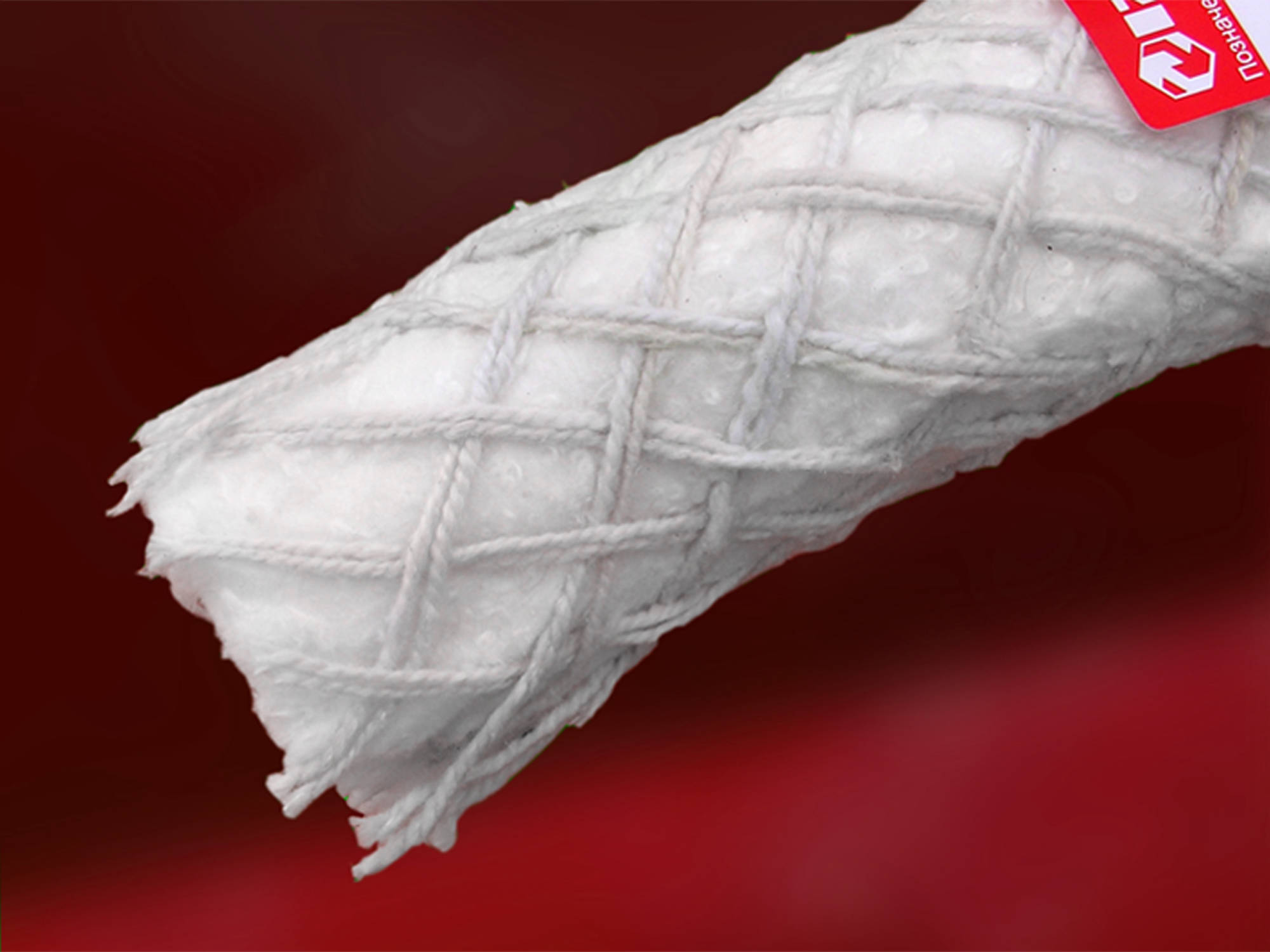

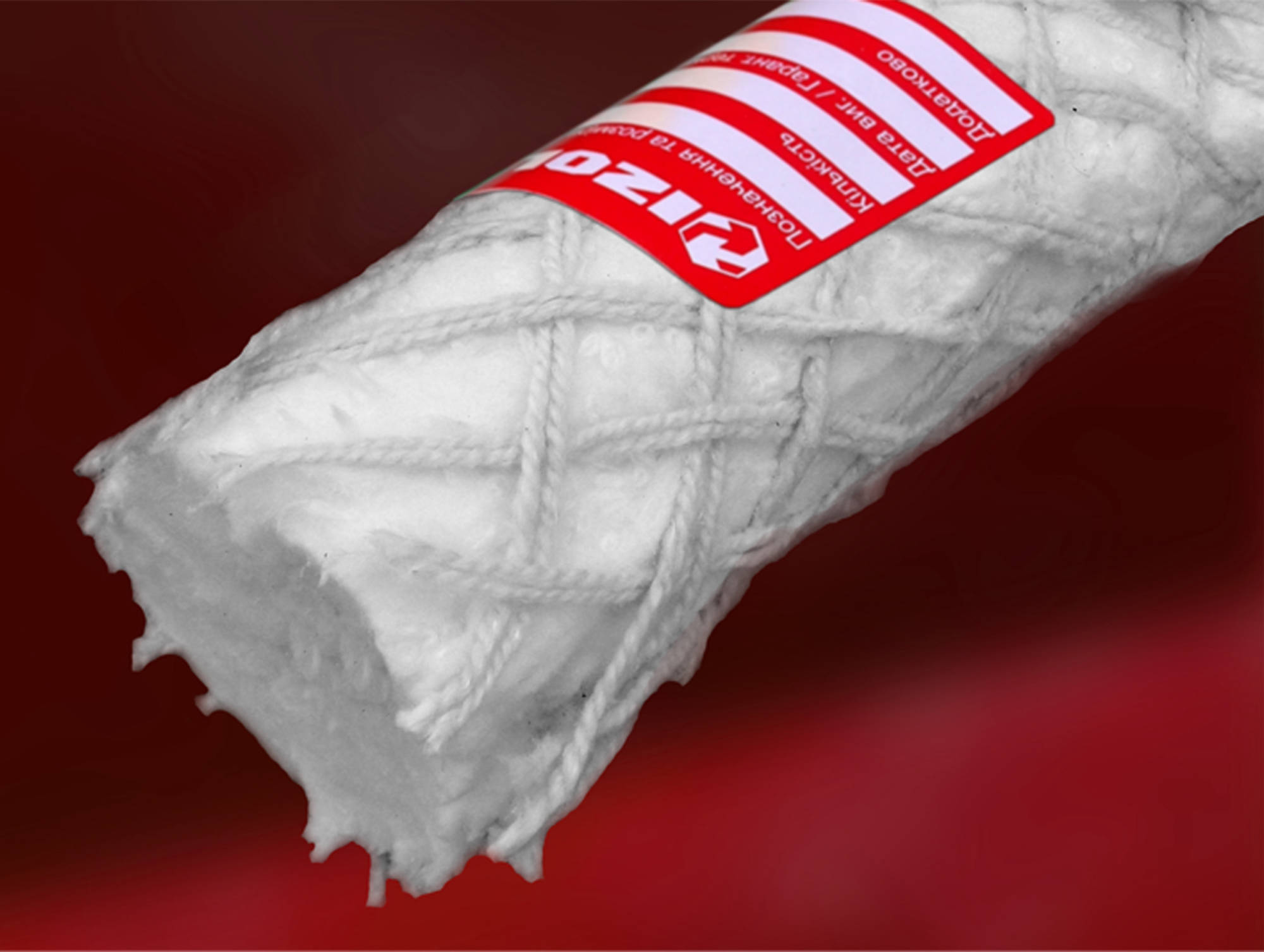

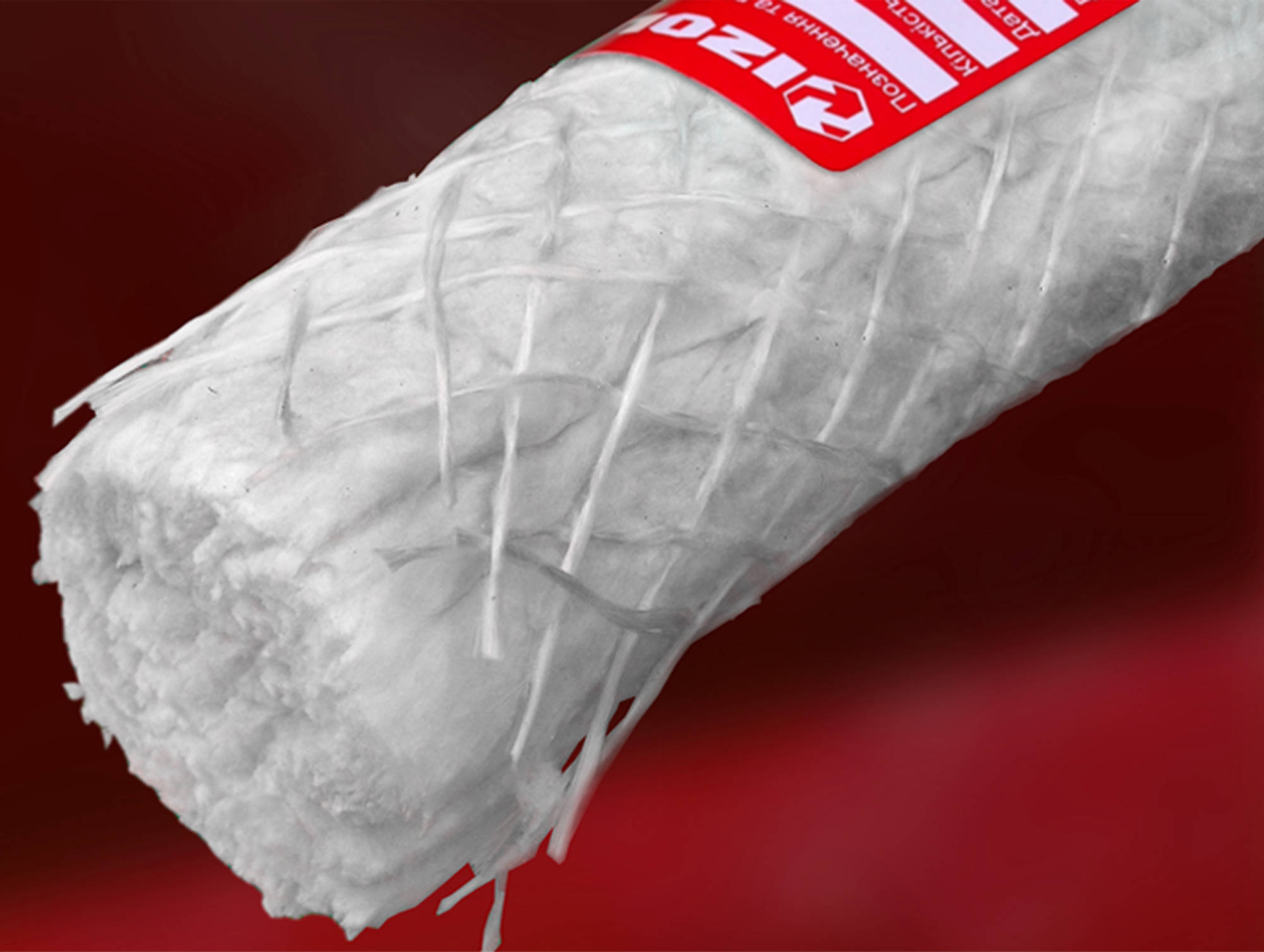

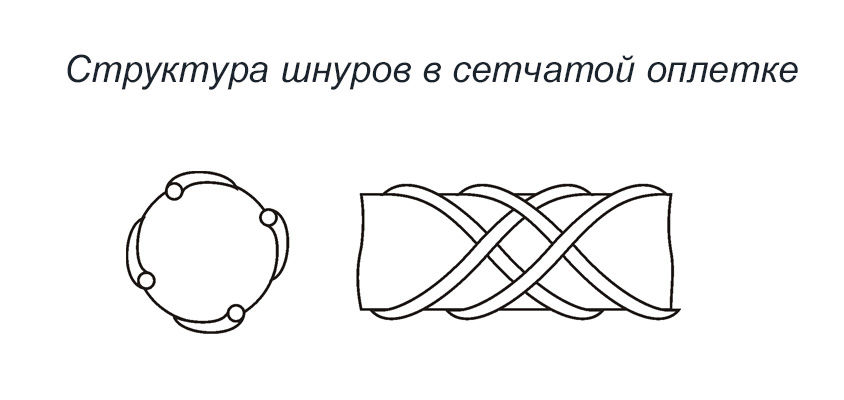

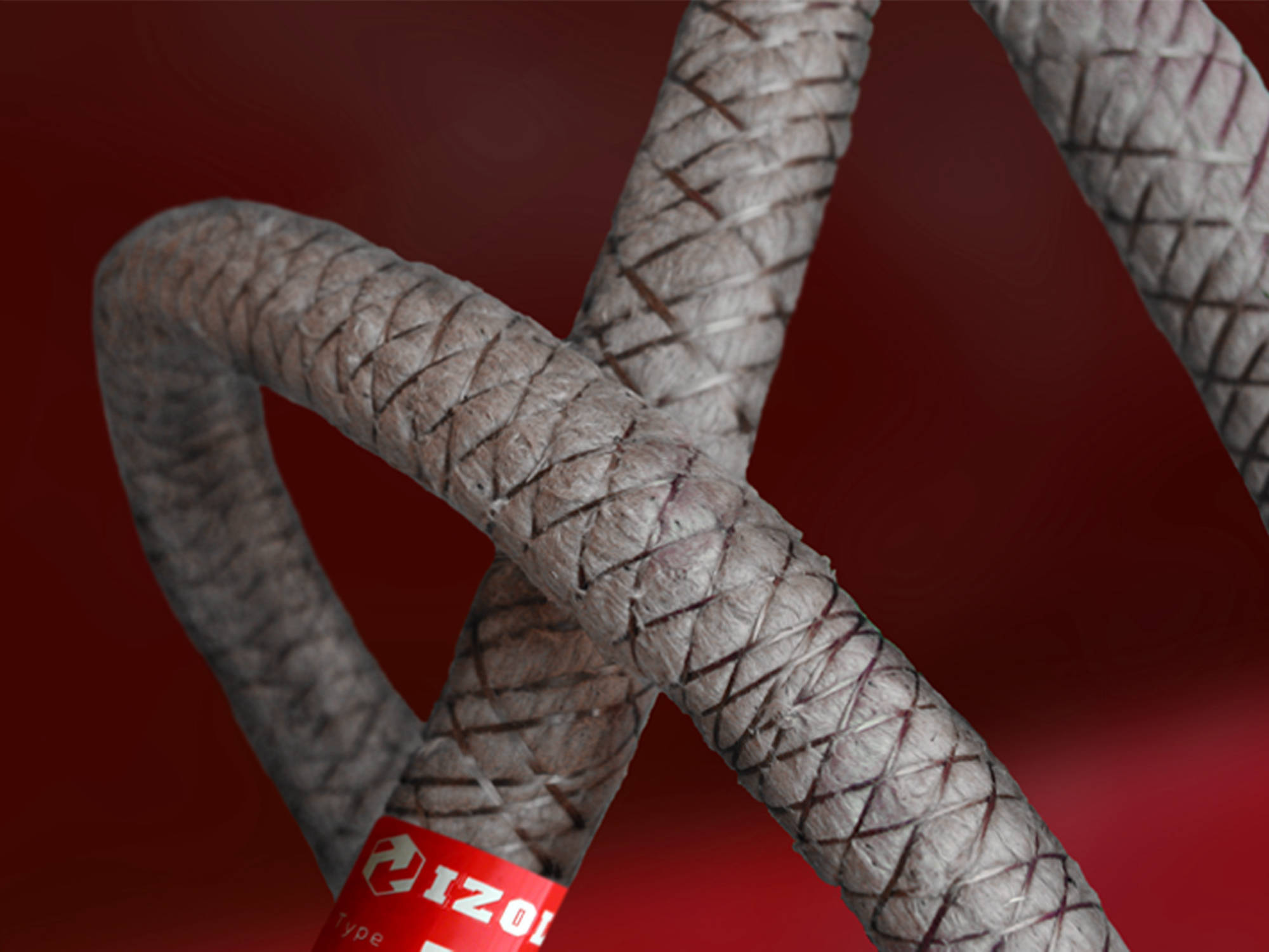

The cords in mesh braid

The cords of this group do not contain dense braid. They consist of a soft core based on a mineral, basal or ceramic fiber, braided with a net of high temperature thread.

These cords are widely used in construction as a joint sealing with great soundproofing features and as a heat insulator of air duct systems.

The cords in a net braid are made of round cross section of diameters from 10 to 150 mm.

Mobirise

Types of Cords in Mesh Braid


IZOPACK-50М

IZOPACK-70M

IZOPACK-90M

IZOPACK-120M

IZOPACK-130M

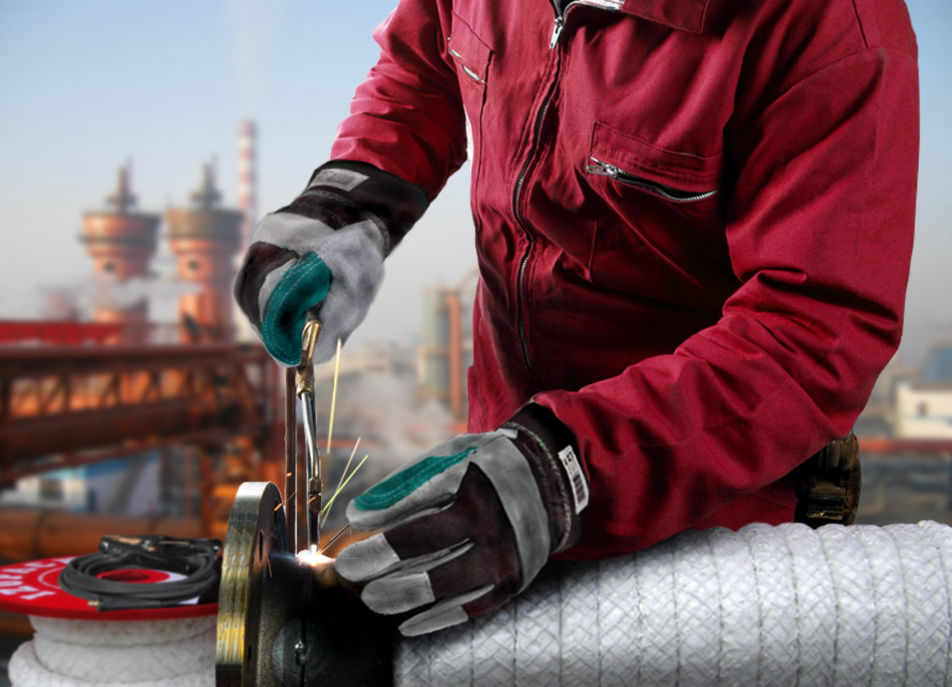

The cords are used as lagging in welding, which doesn’t let the weld to cool down fast to avoid welding defects.

Mobirise

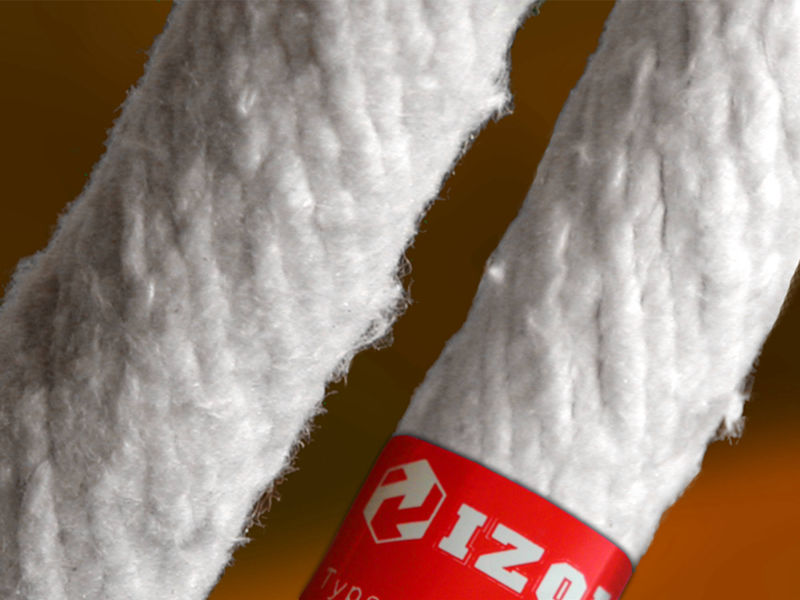

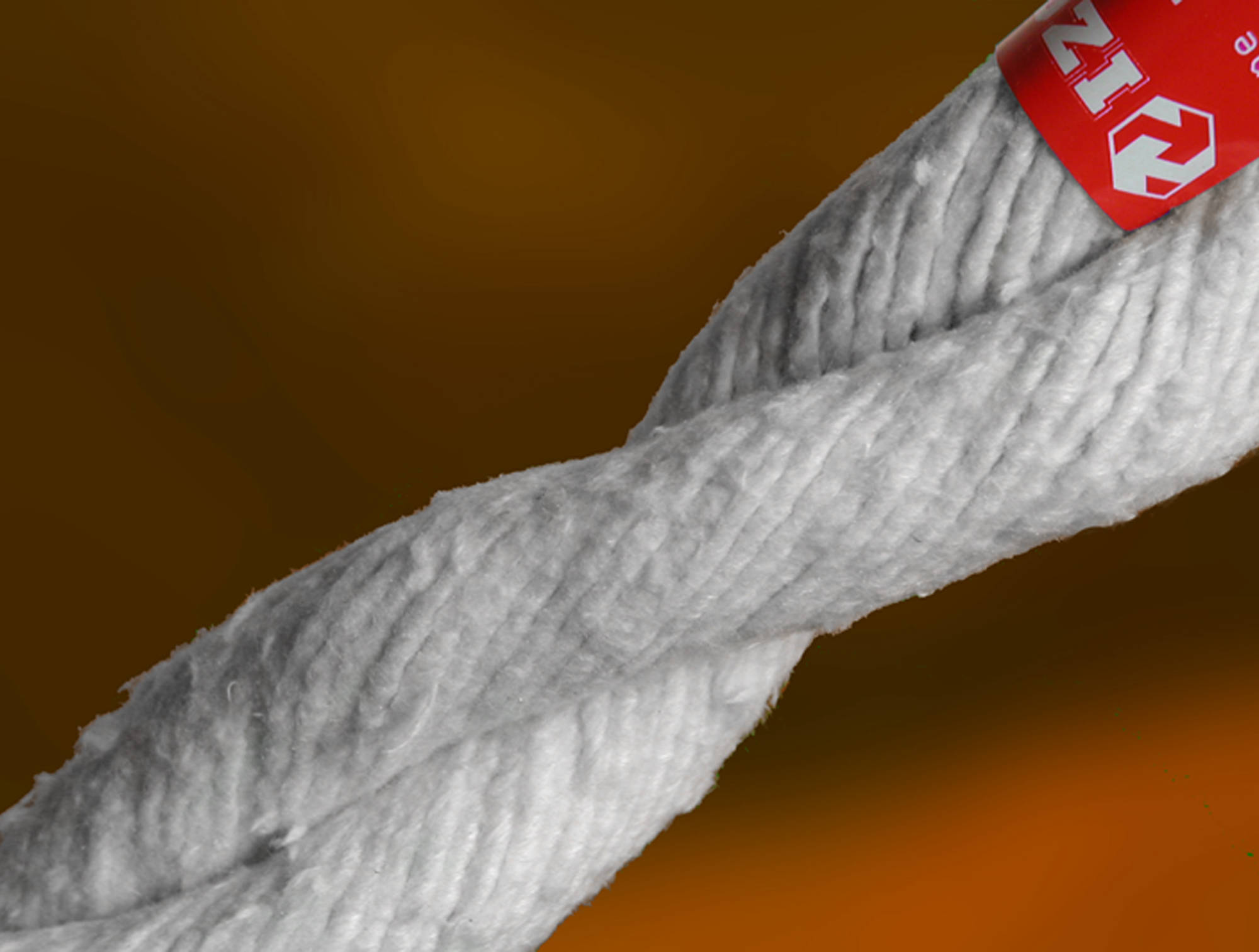

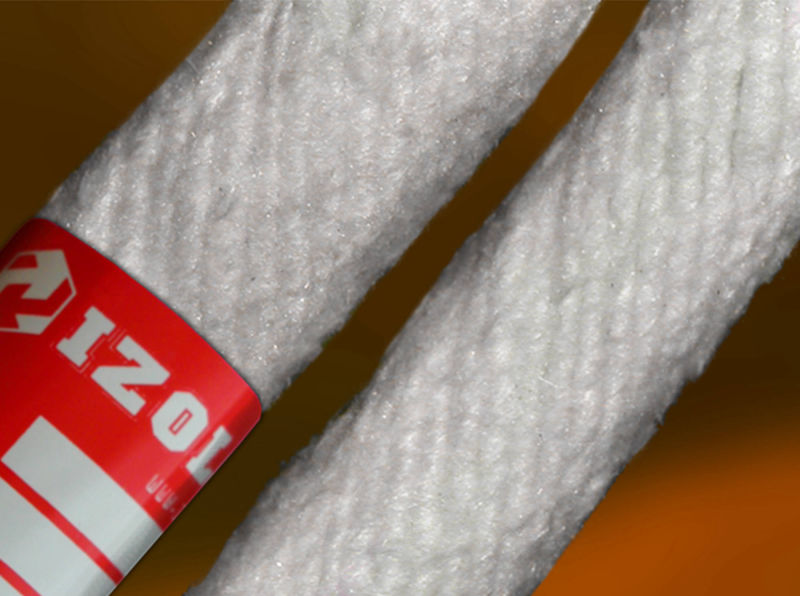

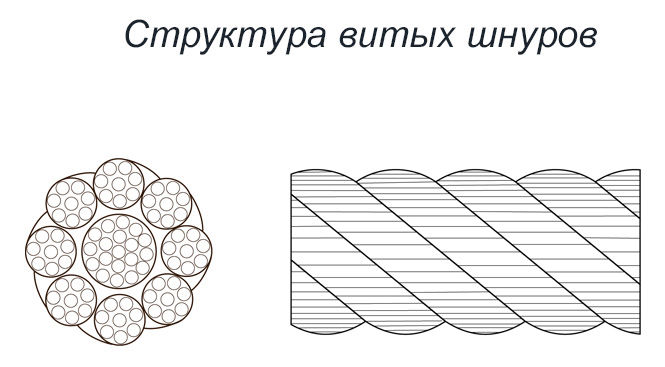

Twisted Cords

The twisted cords consist of separated threads twisted into a single bundle.

Diameters from 2 till 20 mm.

Mobirise

Types of Twisted Cords



IZOPACK-50T

IZOPACK-70T

IZOPACK-90T

IZOPACK-120T

IZOPACK-130T

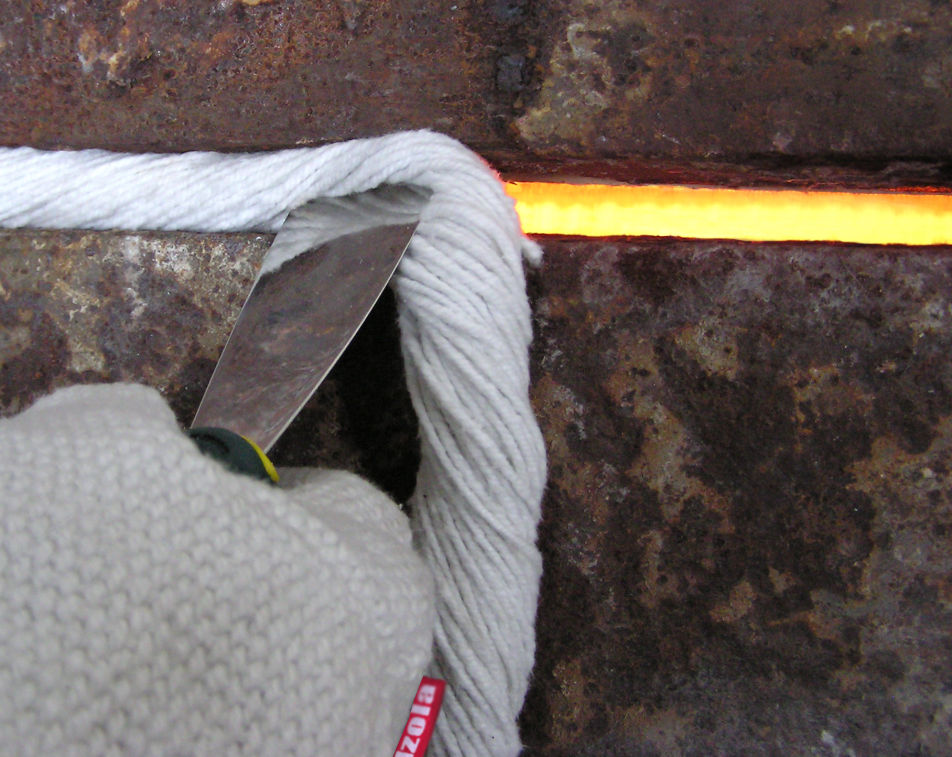

The cords structure allows it to be used as a universal sealant, because it is easy to disband and to put into gaps and holes of different configurations and shapes.

Mobirise

Application temperature


For some cords the braiding doesn’t matter during the operation process and all functions are carried out by the core. Therefore, the temperatures of braidings and cores are shown separately on the diagram.

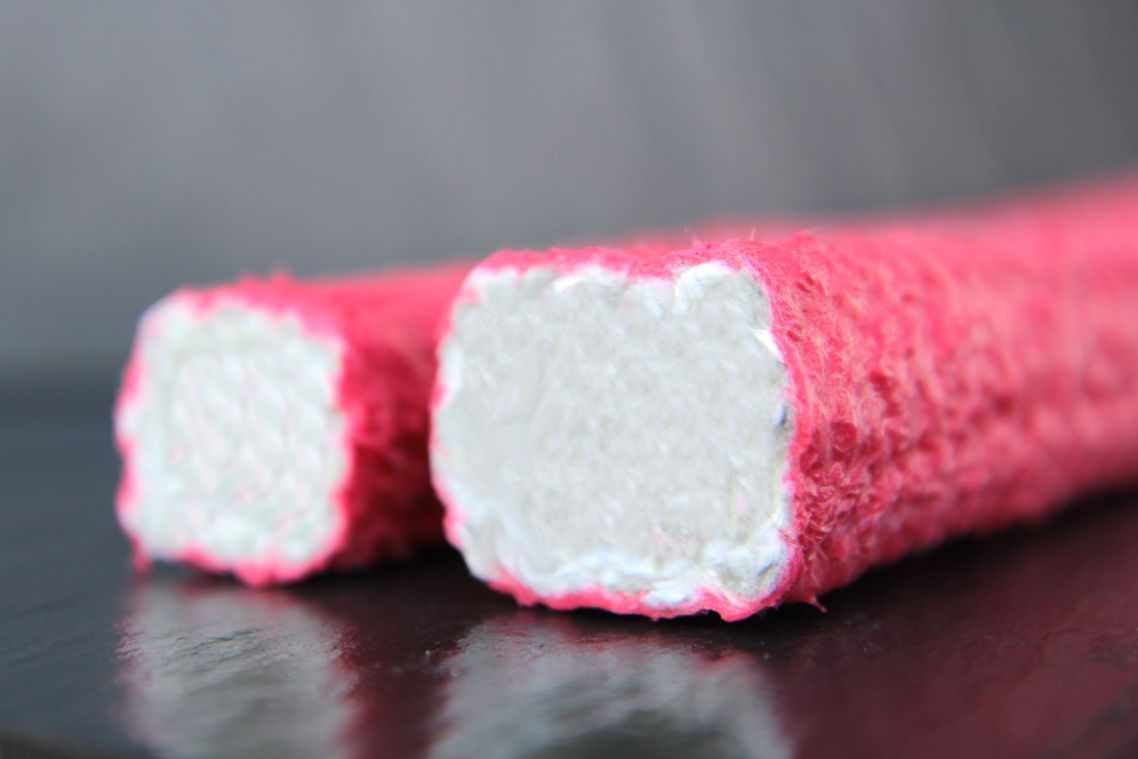

Cords Coated with Silicon

The high temperature silicon coatings created a new class of insulating cords that have got great insulating features

Cords with Silicon

IZOPACK-50S
IZOPACK-52S
IZOPACK-70S
IZOPACK-75S
IZOPACK-77S
IZOPACK-90S
IZOPACK-92S
IZOPACK-120S
IZOPACK-122S
IZOPACK-130S
IZOPACK-132S

Mobirise

Advantages of coatings:

 - protection from mechanical impacts, frictions, punctures, accidental cuts

- protection from soaking

- protection from reactive environments, petrol, oil and lubricants providing additional sealing features

Mobirise

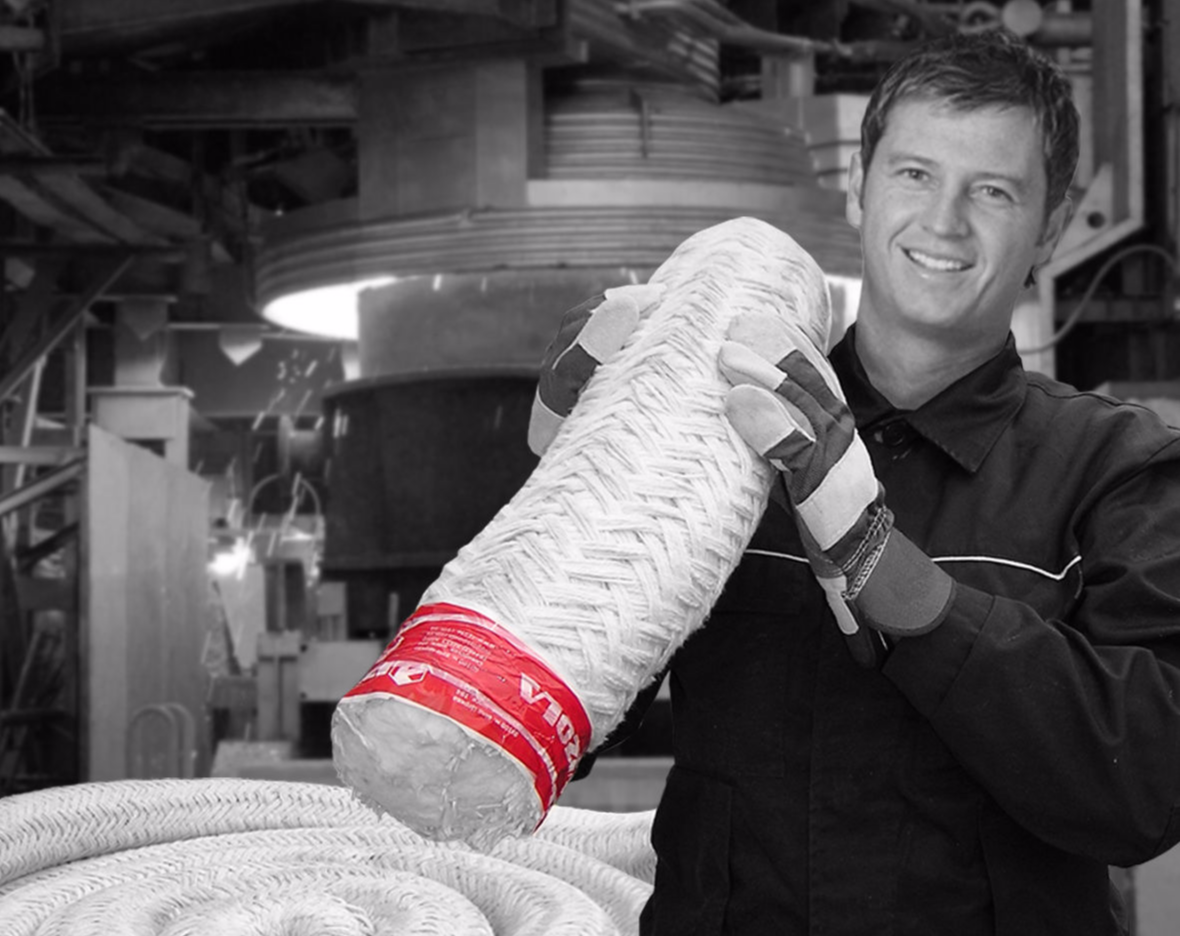

Big diameter cords

We manufacture cords with a maximum cross section diameter up to 150 mm.

How to make an order

1. Select cord yourself by exploring the catalog or the parameters table.

2. Let us help you in the selection of cord. Simply tell us the initial parameters (temperature, composition of the environment, type of the equipment).

Order form: cord model + cross section size (mm) + amount (m)

For example:
IZOPACK-50 d. 12 mm, 20 m (round section)
IZOPACK-50 12x12 mm, 20 m (square section)
IZOPACK-50 20x10 mm, 20 m (rectangular section)
